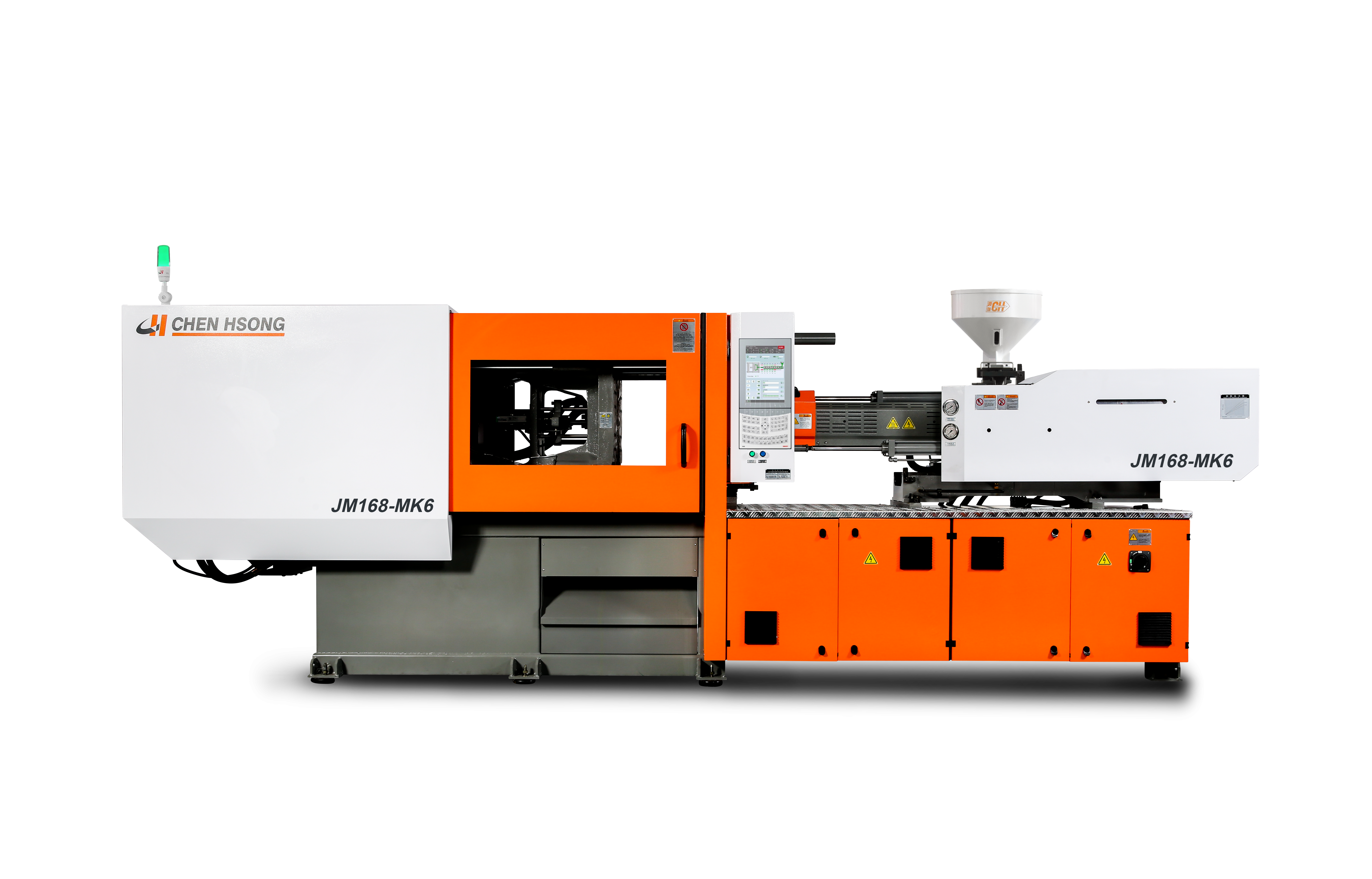

Jetmaster-MK6 Series

Clamping force of 88 to 1000 tons

Driven by the revolutionary intelligent servo system, the Jetmaster-Ai-SVP/2 injection moulding machine series combines a fast-response gear pump with a high-precision servo drive that guarantees the highest response, highest precision and lowest power consumption at the same time.

EUROMAP STANDARD

Hole pattern and ejector pattern according to Euromap standards*.
T-slot or other pattern possible on request

BECKHOFF X-MOLD CONTROL APPLICATION

The XMold controller of Beckhoff offers an integrated solution for the automation of the Chen Hsong Injection

Molding machines. High-speed applications and complete production cells can be implemented with XMold.

The integrated eXtreme Fast Control technology enables the sampling of rapidly changing input signals, allowing

the injection process to be controlled with high precision. The 12,1 “ screen area with touch function enables a

clear process visualization

HIGH PERFORMANCE

AND VERSATILE SCREW DESIGN

More than 20 years of Japanese expertise is used for the

development of the screws for this MK6 series. They are

available for several process requirements (f.e. PVC screw,

PC barrier screw) and for high demand mixing requirements

(high mixing barrier screw).

SUPER HIGH PRECISION

Exclusive for this MK6 range is the new proprietary servo

pressure regulation technology. This unique technology

ensures fast pressure relief while never reversing the

pump. High precision linear transducers are used for the

clamping, injection and ejector axes. All results in lowpressure mold protection.

EUROPEAN COMPONENTS

Standard European components:

Hydraulic valves: Bosch Rexroth or YUKEN

Hydraulic pump: Eckerle

Linear transducers: Gefran or Novotechnik

Electrical components: Siemens, Schneider, Telemechanique, PILZ

INOVANCE SERVO DRIVE SYSTEM

The Inovance servo drive system is designed dedicated for

injection molding machines. This system provides high performance,

precision, low noise and easy maintenance. For machines using this

servo drive, energy can be saved by up to 80%.

HIGH SPEED, SHORT CYCLE TIME

The Chen Hsong MK6 series has the fastest clamping,

injection and ejection movements among competition.

This results in increased production efficiency with

smoother and more stable movements.
