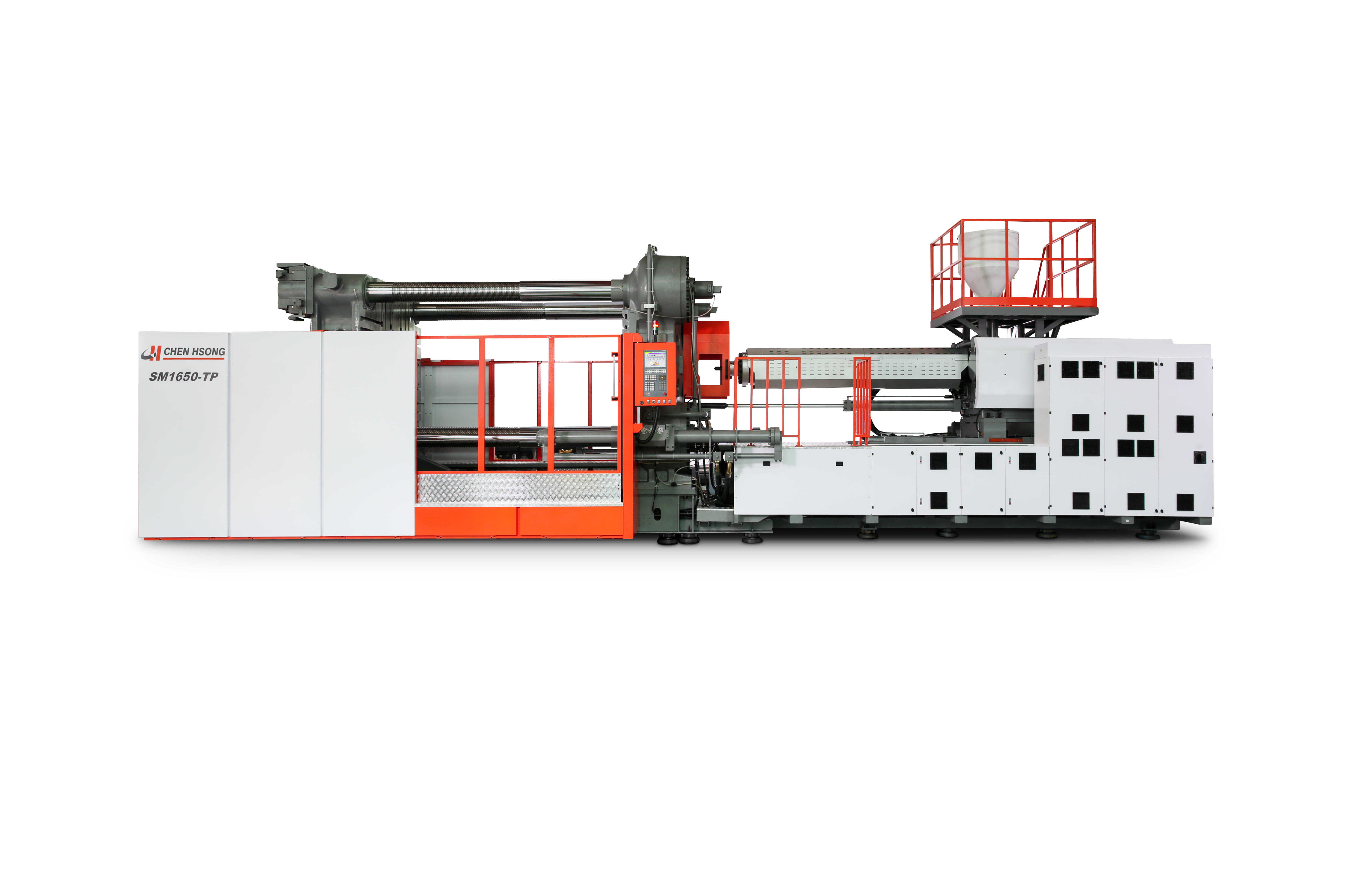

Supermaster-TP Advanced

Clamping force of 700 to 6500 tons

The Supermaster Two Platen Servo Drive injection moulding machine series is a revolutionary two-platen design.
Designed in 3 years with a team led by leading European and Japanese industry experts, it represents a unique combination of world-class, no compromise performance and characteristics. Numerous innovations protected by international patents give this machine a very good price-performance value.

BECKHOFF X-MOLD CONTROL APPLICATION

The X-Mold controller of Beckhoff offers an integrated solution for the automation of the Chen

Hsong Injection Molding machines.
High-speed applications and complete production cells can be

implemented with XMold.
The integrated eXtreme Fast Control technology enables the sampling of

rapidly changing input signals, allowing the injection process to be controlled with high precision.
The

12,1 “ screen area with touch function enables a clear process visualization.

EUROPEAN COMPONENTS

Standard European components:

Hydraulic valves: Bosch Rexroth or YUKEN

Hydraulic pump: Eckerle

Linear transducers: Gefran or Novotechnik

Electrical components: Siemens, Schneider, Telemechanique, PILZ

EUROPEAN COMPONENTS

Standard European components:

Hydraulic valves: Bosch Rexroth or YUKEN

Hydraulic pump: Eckerle

Linear transducers: Gefran or Novotechnik

Electrical components: Siemens, Schneider, Telemechanique, PILZ

EUROMAP STANDARD

T-slot and ejector pattern according

to Euromap 2 standards *.

FAST MOLD-HEIGHT ADJUSTMENT

AND INTERLOCK MECHANISM

This patented clamping and interlock system ensures

accurate, reliable and fast operation.

INOVANCE SERVO DRIVE SYSTEM

The Inovance servo drive system is designed dedicated

for injection molding machines.
This system provides high

performance, precision, low noise and easy maintenance.

For machines using this servo drive, energy can be saved

by up to 80%
