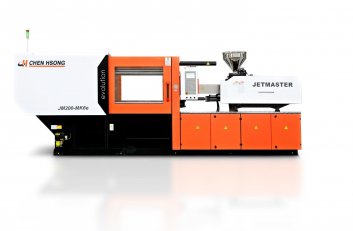

EVOLUTION MK6e SERIES | 90 - 650 TON TOGGLE

Injection molding machine

Clamping force ranging from 90 up to 650 ton

ENERGY SAVING

The SVP/2 system, with speed controlled servomotor, drives a fixed internal gear pump. The system pressure is measured real-time by a pressure sensor. In this way it can provide the required flow according the requirement to eliminate non-functioning consumption. In total this leads to lower energy consumption, high precision, low noise and low inertia.

EUROMAP STANDARD

Hole pattern and ejector pattern according to Euromap standards*.

T-slot or other pattern possible on request

BECKHOFF X-MOLD CONTROL APPLICATION

The XMold controller of Beckhoff offers an integrated solution for the automation of

the Chen Hsong Injection Molding machines. High-speed applications and complete

production cells can be implemented with XMold. The integrated eXtreme Fast Control

technology enables the sampling of rapidly changing input signals, allowing the

injection process to be controlled with high precision. The 12,1 “ screen area with touch

function enables a clear process visualization.

EUROPEAN COMPONENTS

Standard European components:

Hydraulic valves: Bosch Rexroth or YUKEN

Hydraulic pump: Eckerle

Linear transducers: Gefran or Novotechnik

Electrical components: Siemens, Schneider, Telemechanique, PILZ

INOVANCE SERVO DRIVE SYSTEM

The Inovance servo drive system is designed dedicated for

injection molding machines. This system provides high performance,

precision, low noise and easy maintenance. For machines using this

servo drive, energy can be saved by up to 80%.
